Augite

A valid IMA mineral species - grandfathered
This page kindly sponsored by Robert M. Hazen
Hide all sections | Show all sections

About AugiteHide

Formula:
(CaxMgyFez)(Mgy1Fez1)Si2O6
Where 0.4 ≤ x ≤ 0.9, x+y+z=1 and y1+z1=1

This formula is based on the definition by Morimoto et al. (1988)
Colour:
Brown-green, black, green-black, brown, purplish brown
Lustre:
Vitreous
Hardness:
5½ - 6
Specific Gravity:
3.19 - 3.56
Crystal System:
Monoclinic
Name:
Named by Abraham G. Werner in 1792 from the Greek αυγή ("auge") for "shine" or "luster," in allusion to the appearance of its cleavage surfaces.
Pyroxene Group, Clinopyroxene Subgroup. In the Ca-Fe-Mg (diopside-hedenbergite-augite) quadrilateral, the ideal structural formula is M2M1[Si2O6], where M2 is a distorted octahedral site which preferentially accepts large cations such as alkaline earth/alkali atoms (Ca, but may accept transition metals) and where M1 is a smaller regular octahedral site preferentially accepting transition metals, etc. (most commonly Mg, Fe2+). The substitutions containing no changes in valence within M2 (2+), Mi (2+), and tetrahedral sites, T (4+), is the normal scheme. A variety of additional substitution schemes, which require coupling of substituents, have been identified in these pyroxenes. Often these substitutions result in a change of species designation when they are dominant.

Substitution 1 has Na substitution in M2 and trivalent ions of Al, Fe, Cr, and Sc substituting in M1.

Substitution 2 involves Na substitution in M2 and mixed valance transition metals such as [Fe2+0.5Ti4+0.5] substituting in M1.

Substitution 3, also called Tschermak's Component, involves coupled M1 octahedral and tetrahedral substitutions, such as CaAl[AlSiO6] or CaTi3+[AlSiO6].

Substitution 4 is a variant of Substitution 2 and has dominant Ca in M2 with mixed valence substitution in M1 involving divalent and tetravalent Ti and Al substitution in tetrahedral sites, e.g. Ca[(Mg, Fe2+0.5Ti4+0.5)][AlSiO6]. In highly substituted Ca-Fe-Mg pyroxenes, several substitutional schemes may be identified.

Substitution schemes 2 and 4 have not yet yielded named mineral species.

Augite could be considered to be a sub-calcic member of the diopside-hedenbergite series but, as defined by Morimoto et al. (1988) may have Fe>Mg or Mg>Fe without a change in name. Because of the way augite has been defined (Morimoto et al, 1988), there is the implication that in rare cases, a variety of anions may be dominant in various the various sites, including M2, M1, and T. These extreme compositions are rare in the large majority of augites. The clinopyroxenes with Wo5-20 are classed as pigeonite, another mineral that could be thought of as slightly alkalic clinoenstatite-clinoferrosilite.

However, there is a structural discontinuity between these pyroxenes at low-medium temperatures, and detailed chemical analysis and even structural analysis should be obtained in order to properly classify these unusual compositions. Similarly, extensive substitution of Na, for example, as in scheme 1 (Morimoto et al., 1988) could lead to Aegirine-augite or aegirine compositions depending on the other elements involved.




Unique IdentifiersHide

Mindat ID:
419
Long-form identifier:
mindat:1:1:419:0
GUID
(UUID V4):
7dea6009-a086-4aaf-bd49-c1d2b441a54e

Classification of AugiteHide

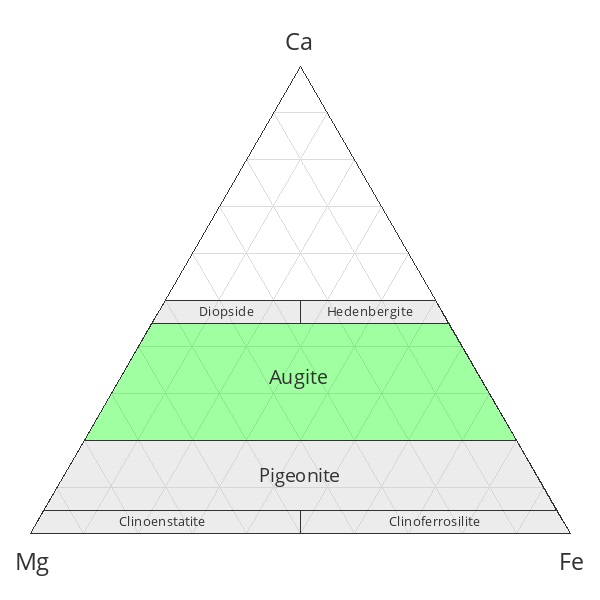

Augite and its relation to other pyroxenes (after Morimoto et al., 1988).


Previous petrological nomenclature of clinopyroxenes from basaltic magmas (after Poldervaart & Hess, 1951)

IMA Classification of AugiteHide

Approved, 'Grandfathered' (first described prior to 1959)
IMA Formula:
(Ca,Mg,Fe)2Si2O6
9.DA.15

9 : SILICATES (Germanates)
D : Inosilicates
A : Inosilicates with 2-periodic single chains, Si2O6; pyroxene family
65.1.3a.3

65 : INOSILICATES Single-Width,Unbranched Chains,(W=1)
1 : Single-Width Unbranched Chains, W=1 with chains P=2
16.23.1

16 : Silicates Containing Aluminum and other Metals
23 : Aluminosilicates of Fe, Ca, and Mg

Mineral SymbolsHide

As of 2021 there are now IMA–CNMNC approved mineral symbols (abbreviations) for each mineral species, useful for tables and diagrams.

Please only use the official IMA–CNMNC symbol. Older variants are listed for historical use only.

SymbolSourceReference
AugIMA–CNMNCWarr, L.N. (2021). IMA–CNMNC approved mineral symbols. Mineralogical Magazine, 85(3), 291-320. doi:10.1180/mgm.2021.43
AugKretz (1983)Kretz, R. (1983) Symbols of rock-forming minerals. American Mineralogist, 68, 277–279.
AugSiivolam & Schmid (2007)Siivolam, J. and Schmid, R. (2007) Recommendations by the IUGS Subcommission on the Systematics of Metamorphic Rocks: List of mineral abbreviations. Web-version 01.02.07. IUGS Commission on the Systematics in Petrology. download
AugWhitney & Evans (2010)Whitney, D.L. and Evans, B.W. (2010) Abbreviations for names of rock-forming minerals. American Mineralogist, 95, 185–187 doi:10.2138/am.2010.3371
AugThe Canadian Mineralogist (2019)The Canadian Mineralogist (2019) The Canadian Mineralogist list of symbols for rock- and ore-forming minerals (December 30, 2019). download

Physical Properties of AugiteHide

Vitreous
Transparency:
Translucent, Opaque
Colour:
Brown-green, black, green-black, brown, purplish brown
Streak:
Greenish gray, light to dark brown
Hardness:
5½ - 6 on Mohs scale
Tenacity:
Brittle
Cleavage:
Distinct/Good
Good on {110}
Parting:
on {100} and {010}
Fracture:
Irregular/Uneven, Sub-Conchoidal
Density:
3.19 - 3.56 g/cm3 (Measured)    3.31 g/cm3 (Calculated)

Optical Data of AugiteHide

Type:
Biaxial (+)
RI values:
nα = 1.680 - 1.735 nβ = 1.684 - 1.741 nγ = 1.706 - 1.774
2V:
Measured: 40° to 52°, Calculated: 48° to 68°
Birefringence:
0.032
Max Birefringence:
δ = 0.026 - 0.039
Image shows birefringence interference colour range (at 30µm thickness)
and does not take into account mineral colouration.
Surface Relief:
High
Dispersion:
r > v weak to distinct
Optical Extinction:
Z : c = 35°-48°
Pleochroism:
Visible
Comments:
X= pale green, pale brown, green, greenish yellow
Y= pale brown, pale yellow-green, violet
Z= pale green, grayish green, violet

Chemistry of AugiteHide

Mindat Formula:
(CaxMgyFez)(Mgy1Fez1)Si2O6

Where 0.4 ≤ x ≤ 0.9, x+y+z=1 and y1+z1=1

This formula is based on the definition by Morimoto et al. (1988)
Common Impurities:
Ti,Cr,Na,Mn,K

Crystallography of AugiteHide

Crystal System:
Monoclinic
Class (H-M):
2/m - Prismatic
Space Group:
B2/b
Setting:
C2/c
Cell Parameters:
a = 9.699 Å, b = 8.844 Å, c = 5.272 Å
β = 106.97°
Ratio:
a:b:c = 1.097 : 1 : 0.596
Unit Cell V:
432.53 ų (Calculated from Unit Cell)
Z:
4
Morphology:
Stubby prismatic crystals.
Twinning:
Simple or multiple on {100}, also on {001}
Comment:
Axial setting is C1 2/c 1.

Crystallographic forms of AugiteHide

Crystal Atlas:
Image Loading
Click on an icon to view
Augite no.24 - Goldschmidt (1913-1926)
Augite no.111 - Goldschmidt (1913-1926)
3d models and HTML5 code kindly provided by www.smorf.nl.

Toggle
Edge Lines | Miller Indices | Axes

Transparency
Opaque | Translucent | Transparent

View
Along a-axis | Along b-axis | Along c-axis | Start rotation | Stop rotation

Crystal StructureHide

Load
Unit Cell | Unit Cell Packed
2x2x2 | 3x3x3 | 4x4x4
Show
Big Balls | Small Balls | Just Balls | Spacefill
Polyhedra Off | Si Polyhedra | All Polyhedra
Remove metal-metal sticks
Display Options
Black Background | White Background
Perspective On | Perspective Off
2D | Stereo | Red-Blue | Red-Cyan
View
CIF File    Best | x | y | z | a | b | c
Rotation
Stop | Start
Labels
Console Off | On | Grey | Yellow
IDSpeciesReferenceLinkYearLocalityPressure (GPa)Temp (K)
0000001AugiteClark J, Appleman D, Papike J (1969) Crystal-chemical characterization of clinopyroxenes based on eight new structure refinements _cod_database_code 1000035 Mineralogical Society of America Special Paper 2 31-501969Kakanui, New Zealand0293
0002990AugiteBindi L, Safonov O G, Yapaskurt V O, Perchuk L L, Menchetti S (2003) Ultrapotassic clinopyroxene from the Kumdy-Kol microdiamond mine, Kokchetav Complex, Kazakhstan: Occurrence, composition and crystal-chemical characterization American Mineralogist 88 464-46820030293
0012864AugiteGualtieri A F (2000) Accuracy of XRPD QPA using the combined Rietveld-RIR method Journal of Applied Crystallography 33 267-2782000Napoli, Italy0293
CIF Raw Data - click here to close

X-Ray Powder DiffractionHide

Powder Diffraction Data:
d-spacingIntensity
3.22 Å(70)
2.99 Å(100)
2.94 Å(60)
2.90 Å(30)
2.56 Å(40)
2.53 Å(30)
2.51 Å(50)
2.13 Å(30)
Comments:
ICDD 41-1483 (titanian augite)

Geological EnvironmentHide

Paragenetic Mode(s):
Paragenetic ModeEarliest Age (Ga)
Stage 1: Primary nebular phases4.567-4.561
4 : Primary chondrule phases4.566–4.561
Stage 2: Planetesimal differentiation and alteration4.566-4.550
5 : Primary asteroid phases4.566–4.560
Stage 3a: Earth’s earliest Hadean crust>4.50
7 : Ultramafic igneous rocks
8 : Mafic igneous rocks
9 : Lava/xenolith minerals (hornfels, sanidinite facies)
Stage 4a: Earth’s earliest continental crust>4.4-3.0
19 : Granitic intrusive rocks
20 : Acidic volcanic rocks
Stage 4b: Highly evolved igneous rocks>3.0
34 : Complex granite pegmatites
36 : Carbonatites, kimberlites, and related igneous rocks
Stage 5: Initiation of plate tectonics<3.5-2.5
40 : Regional metamorphism (greenschist, amphibolite, granulite facies)
Stage 10a: Neoproterozoic oxygenation/terrestrial biosphere<0.6
51 : Pyrometamorphic minerals (see also #54 and #56)<0.36
Geological Setting:
Major rock forming mineral in mafic igneous rocks, ultramafic rocks, and some high-grade metamorphic rocks.

Synonyms of AugiteHide

Other Language Names for AugiteHide

Basque:Augita
Catalan:Augita
Croatian:Augit
Czech:Augit
Dutch:Augiet
Esperanto:Aŭgito
Finnish:Augiitti
Hebrew:אוגיט
Hungarian:Augit
Japanese:普通輝石
Lithuanian:Augitas
Polish:Augit
Portuguese:Augite
Russian:Авгит
Serbian:Аугит
Simplified Chinese:普通辉石
Swedish:Augit
Tajik (Cyrillic Script):Авгит
Ukrainian:Авгіт

Varieties of AugiteHide

AsteroiteA stellate radiating iron-rich variety of Augite.

Originally described from Nordmark, Filipstad, Värmland, Sweden.
FassaiteAugite with a low iron content.
Originally reported from Fassa Valley, Trento Province, Trentino-Alto Adige, Italy.
FerroaugiteAn obsolete term for a pyroxene that would now be categorized as augite.
FerrohedenbergitePreviously defined as a clinopyroxene with Ca: 25-45% and Mg < 10%;

This composition would now be classified as augite.
Korea-AugiteDistinguised by its optical properties, from an Alkali-trachyte in Korea.
Soda-AugiteIntermediate between Augite and Aegirine-Augite, unsure how this differs from the latter.
Titanium-bearing AugiteA Ti-rich variety of augite, usually notably pink in thin section.

Relationship of Augite to other SpeciesHide

Other Members of this group:
AegirineNaFe3+Si2O6Mon. 2/m : B2/b
Aegirine-augite(NaaCabFe2+cMgd)(Fe3+eAlfFe2+gMgh)Si2O6Mon. 2/m : B2/b
BurnettiteCaVAlSiO6Mon. 2/m : B2/b
ClinoenstatiteMgSiO3Mon. 2/m : P21/b
ClinoferrosiliteFe2+2Si2O6Mon. 2/m : P21/b
ColomeraiteNaTi3+Si2O6Mon. 2/m : B2/b
DavisiteCaScAlSiO6Mon. 2/m : B2/b
DiopsideCaMgSi2O6Mon. 2/m : B2/b
EsseneiteCaFe3+[AlSiO6]Mon. 2/m : B2/b
GrossmaniteCaTi3+ AlSiO6Mon. 2/m : B2/b
HedenbergiteCaFe2+Si2O6Mon. 2/m : B2/b
JadeiteNa(Al,Fe3+)Si2O6Mon. 2/m : B2/b
JervisiteNaSc3+Si2O6Mon. 2/m : B2/b
JohannseniteCaMn2+Si2O6Mon. 2/m : B2/b
KanoiteMn2+(Mg,Mn2+)Si2O6Mon. 2/m : P21/b
KosmochlorNaCrSi2O6Mon. 2/m : B2/b
KushiroiteCaAl[AlSiO6]Mon. 2/m : B2/b
NamansiliteNaMn3+Si2O6Mon. 2/m : B2/b
NatalyiteNaV3+Si2O6Mon. 2/m : B2/b
Omphacite(NaaCabFe2+cMgd)(AleFe3+fFe2+gMgh)Si2O6Mon. 2/m
PetedunniteCa(Zn,Mn2+,Mg,Fe2+)Si2O6Mon. 2/m : B2/b
Pigeonite(CaxMgyFez)(Mgy1Fez1)Si2O6Mon. 2/m : P21/b
RyabchikoviteCuMgSi2O6Mon. 2/m : P21/b
SpodumeneLiAlSi2O6Mon. 2/m : B2/b
Tissintite(Ca,Na,◻)AlSi2O6Mon. 2/m : B2/b
UM2001-19-SiO:AlCaMgNa(Na,Mg,Ca)(Mg,Al)Si2O6Mon. 2/m : B2/b
UM2003-36-SiO:CaNaNaCrSi2O6 - CaMgSi2O6Mon. 2/m : B2/b

Common AssociatesHide

Associated Minerals Based on Photo Data:
129 photos of Augite associated with CalciteCaCO3
84 photos of Augite associated with TitaniteCaTi(SiO4)O
59 photos of Augite associated with FluorapatiteCa5(PO4)3F
53 photos of Augite associated with Epidote(CaCa)(AlAlFe3+)O[Si2O7][SiO4](OH)
42 photos of Augite associated with ApatiteCa5(PO4)3(Cl/F/OH)
39 photos of Augite associated with TridymiteSiO2
39 photos of Augite associated with MagnetiteFe2+Fe3+2O4
39 photos of Augite associated with HaüyneNa3Ca(Si3Al3)O12(SO4)
37 photos of Augite associated with PrehniteCa2Al2Si3O10(OH)2
35 photos of Augite associated with LeuciteK(AlSi2O6)

Related Minerals - Strunz-mindat GroupingHide

9.DA.ProtoenstatiteMg2Si2O6Orth. mmm (2/m 2/m 2/m) : Pbcn
9.DA.RyabchikoviteCuMgSi2O6Mon. 2/m : P21/b
9.DA.ColomeraiteNaTi3+Si2O6Mon. 2/m : B2/b
9.DA.05Donpeacorite(Mn,Mg)MgSi2O6Orth. mmm (2/m 2/m 2/m) : Pbca
9.DA.05EnstatiteMg2Si2O6Orth. mmm (2/m 2/m 2/m) : Pbca
9.DA.05FerrosiliteFe2+2Si2O6Orth. mmm (2/m 2/m 2/m) : Pbca
9.DA.10ClinoenstatiteMgSiO3Mon. 2/m : P21/b
9.DA.10ClinoferrosiliteFe2+2Si2O6Mon. 2/m : P21/b
9.DA.10KanoiteMn2+(Mg,Mn2+)Si2O6Mon. 2/m : P21/b
9.DA.10Pigeonite(CaxMgyFez)(Mgy1Fez1)Si2O6Mon. 2/m : P21/b
9.DA.15DiopsideCaMgSi2O6Mon. 2/m : B2/b
9.DA.15EsseneiteCaFe3+[AlSiO6]Mon. 2/m : B2/b
9.DA.15HedenbergiteCaFe2+Si2O6Mon. 2/m : B2/b
9.DA.15 vaJeffersoniteCa(Mn,Zn,Fe)Si2O6
9.DA.15JohannseniteCaMn2+Si2O6Mon. 2/m : B2/b
9.DA.15PetedunniteCa(Zn,Mn2+,Mg,Fe2+)Si2O6Mon. 2/m : B2/b
9.DA.15DavisiteCaScAlSiO6Mon. 2/m : B2/b
9.DA.15KushiroiteCaAl[AlSiO6]Mon. 2/m : B2/b
9.DA.15GrossmaniteCaTi3+ AlSiO6Mon. 2/m : B2/b
9.DA.20Aegirine-augite(NaaCabFe2+cMgd)(Fe3+eAlfFe2+gMgh)Si2O6Mon. 2/m : B2/b
9.DA.20Omphacite(NaaCabFe2+cMgd)(AleFe3+fFe2+gMgh)Si2O6Mon. 2/m
9.DA.25AegirineNaFe3+Si2O6Mon. 2/m : B2/b
9.DA.25JadeiteNa(Al,Fe3+)Si2O6Mon. 2/m : B2/b
9.DA.25JervisiteNaSc3+Si2O6Mon. 2/m : B2/b
9.DA.25KosmochlorNaCrSi2O6Mon. 2/m : B2/b
9.DA.25NamansiliteNaMn3+Si2O6Mon. 2/m : B2/b
9.DA.25NatalyiteNaV3+Si2O6Mon. 2/m : B2/b
9.DA.25Tissintite(Ca,Na,◻)AlSi2O6Mon. 2/m : B2/b
9.DA.30SpodumeneLiAlSi2O6Mon. 2/m : B2/b
9.DA.35HiroseiteFeSiO3Orth. mmm (2/m 2/m 2/m) : Pnma

Fluorescence of AugiteHide

Not fluorescent

Other InformationHide

Health Risks:
No information on health risks for this material has been entered into the database. You should always treat mineral specimens with care.

Augite in petrologyHide

An essential component of rock names highlighted in red, an accessory component in rock names highlighted in green.

Internet Links for AugiteHide

References for AugiteHide

Localities for AugiteHide

This map shows a selection of localities that have latitude and longitude coordinates recorded. Click on the symbol to view information about a locality. The symbol next to localities in the list can be used to jump to that position on the map.

Locality ListShow

This section is currently hidden. Click the show button to view.

矿物 and/or 产地
Mindat Discussions Facebook Logo Instagram Logo Discord Logo
版权所有© mindat.org1993年至2024年,除了规定的地方。 Mindat.org全赖于全球数千个以上成员和支持者们的参与。
隐私政策 - 条款和条款细则 - 联络我们 - Report a bug/vulnerability Current server date and time: 2024.3.19 09:37:30 Page updated: 2024.3.19 00:43:52
Go to top of page
